Brand / Model: Nagel / Citoborma 480 AB
Type: Paper Drill

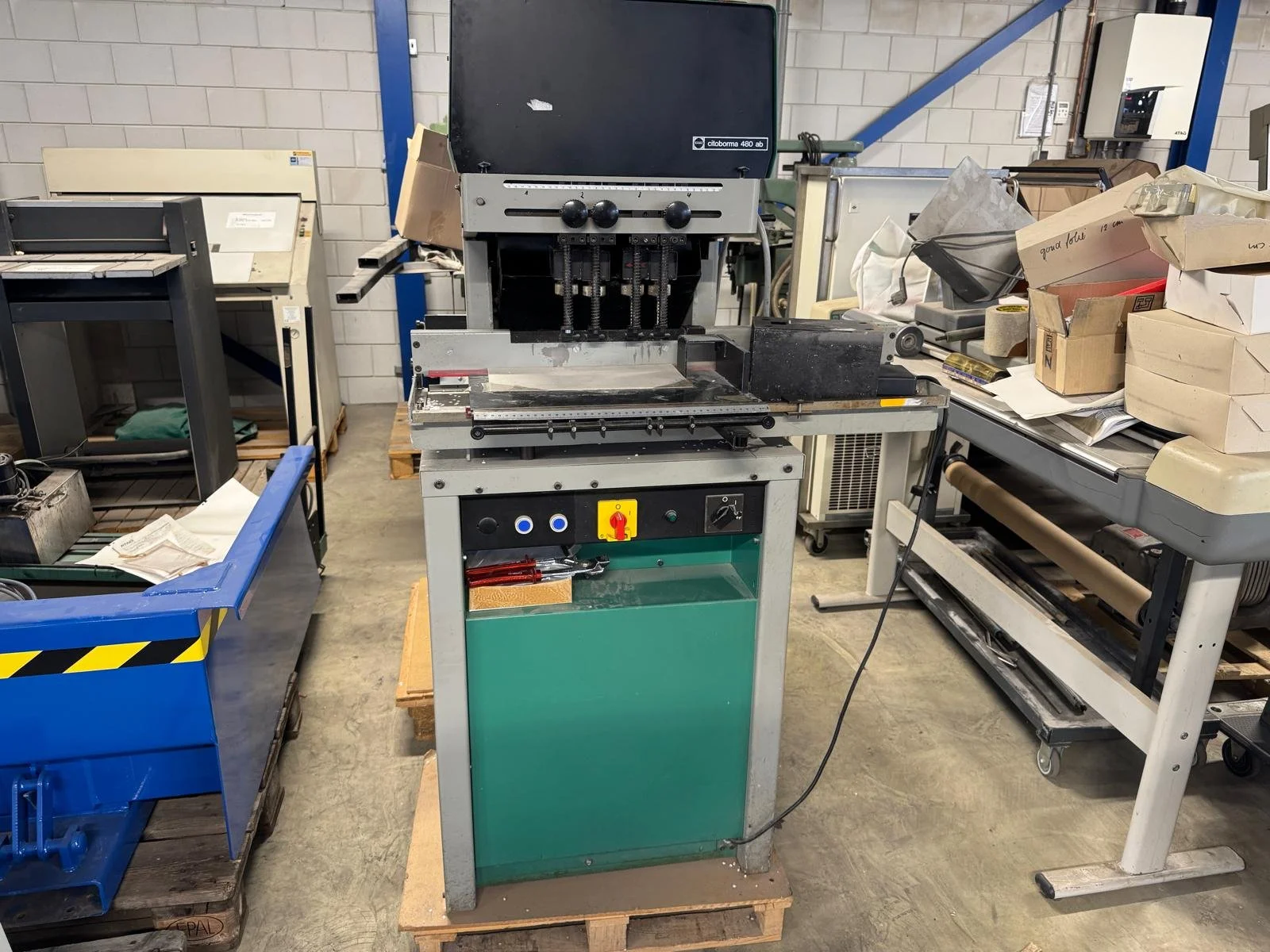

Floor model electric paper drill with 4 drilling heads for 4 holes in one handling job, with adjustable distance between the drills. Semi-automatic operation with electric pressure and automatic downward movement of the drilling unit via footpedal, automatic waste removal, and an adjustable sliding register board with tab-stops.
Specifications:
Drill diameter capacity: 2 – 20 mm
Adjustable distance between drills: 45 – 285 mm
Max. drilling depth capacity: 60 mm
Back gauge adjustment: 0 – 102 mm
Table size: 270 × 460 mm

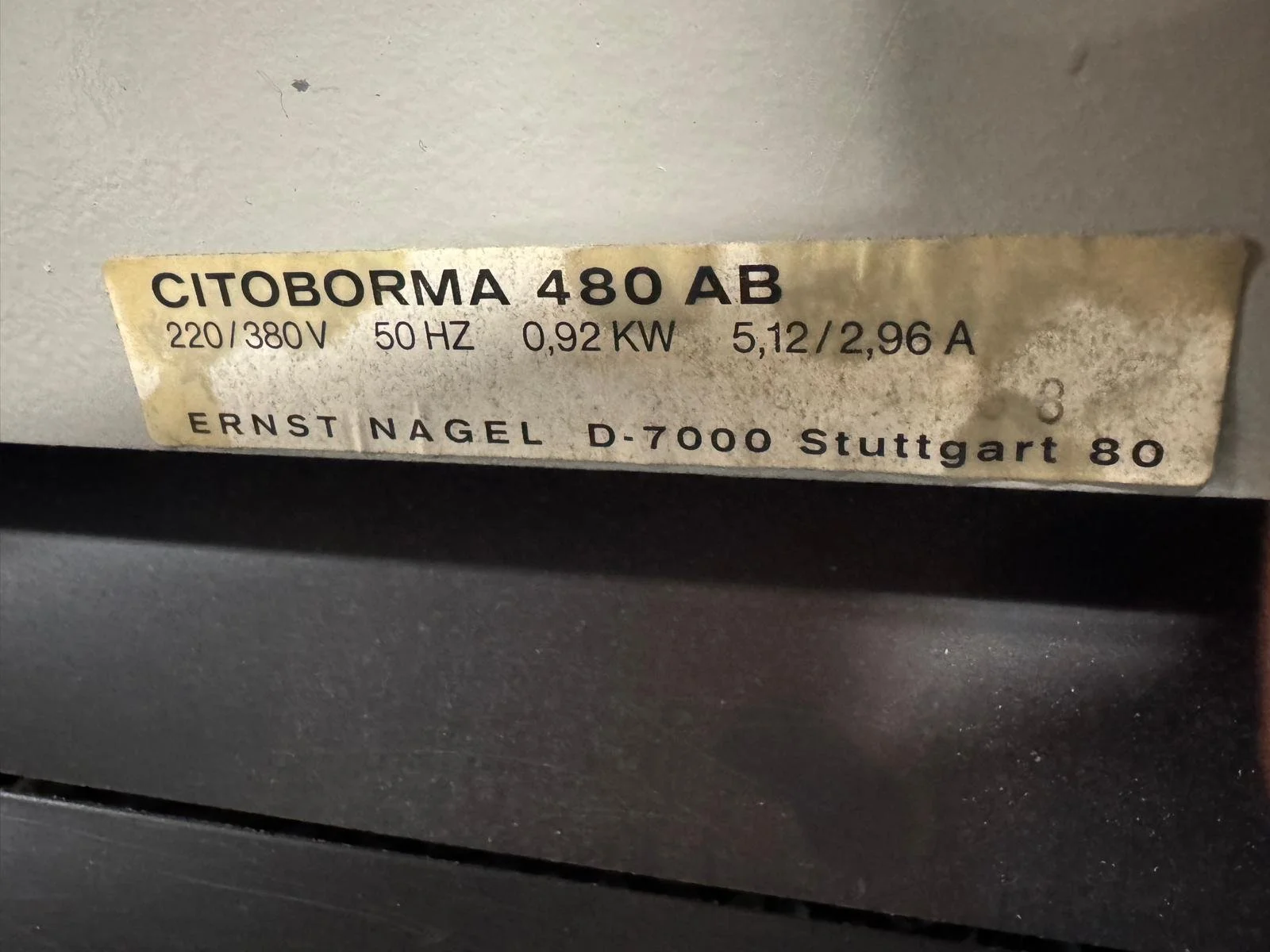

Electrics: 380V, 3 Ph, 50/60 Hz, 2.9 A
Condition: Good working condition, ready for shipment.
Sold as-is, EXWORKS Europe. Contact IPPMCO for full technical details and inspection reports.
