Brand / Model: Duplo / System 3500
Type: Finishing Line
Year / SN: 2010 / 100300009H

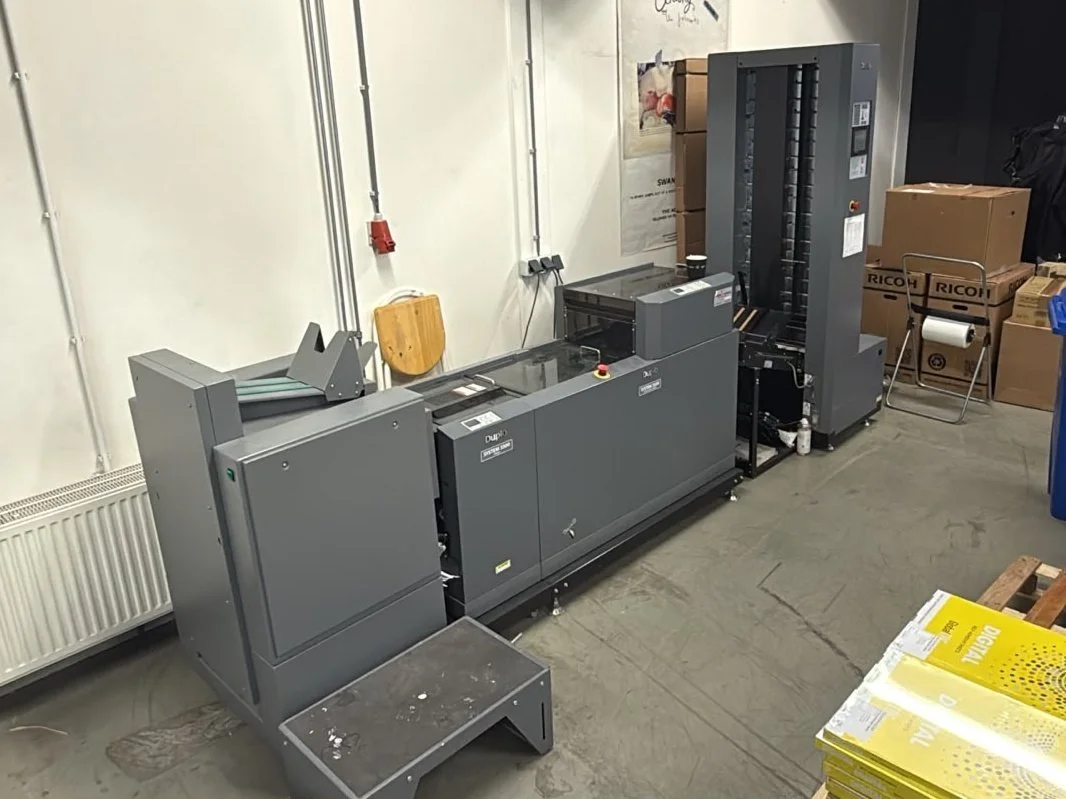

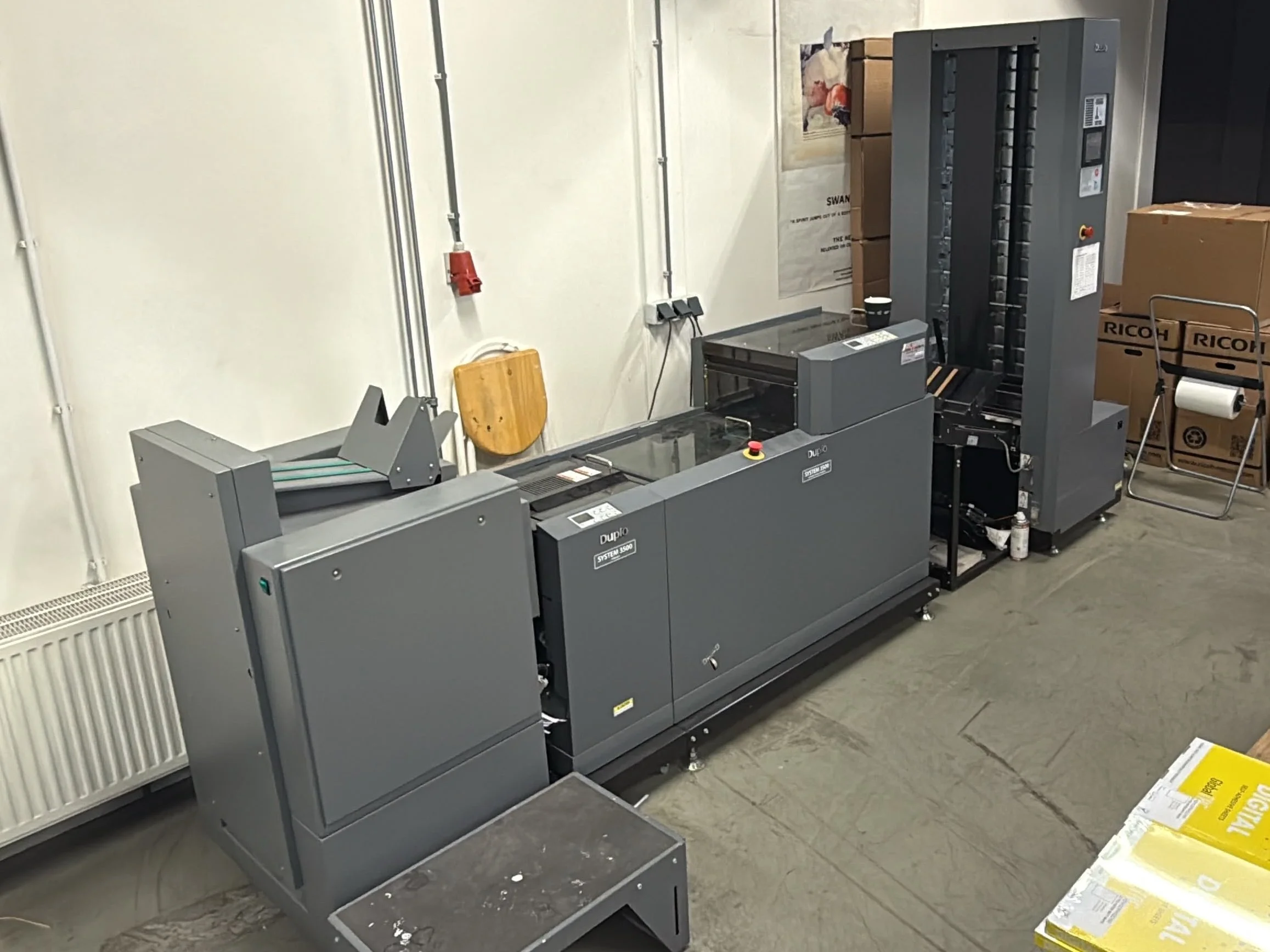

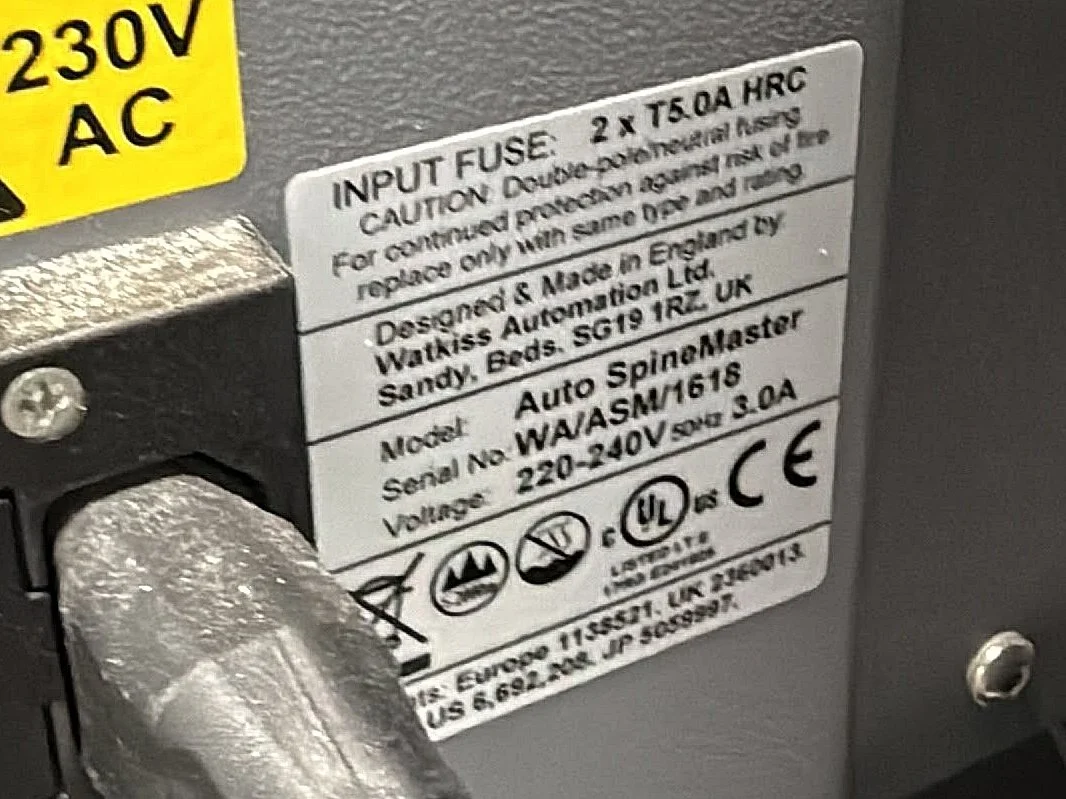

Complete and fully automatic finishing line to produce books, magazines, catalogues etc. 10 station vacuum belt feed collator (including air separation) with inline DBM-350 bookletmaker with wire stitching, folding, trimming and a squarefold (Auto Spinemaster) with stacker delivery on top of the machine. Including online DC-12 rear jogger. Digital operation panel with touch control. All safeties fitted.
Specifications: Min./max. paper size 120×148mm to 350×500mm. Paper weight 40-300gsm. Speed 3,000-9,000 sets/hr. Electrics 230V, 1 Ph, 50/60Hz. Ref. PTZ.
Condition: Good condition. Available direct from stock.
